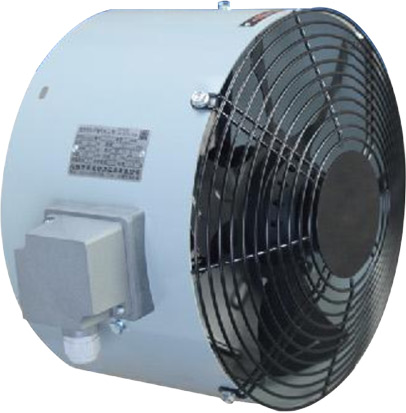

風機所用零部件符合ROHS法規。在靠墻位置安裝時依然可以有效運行。

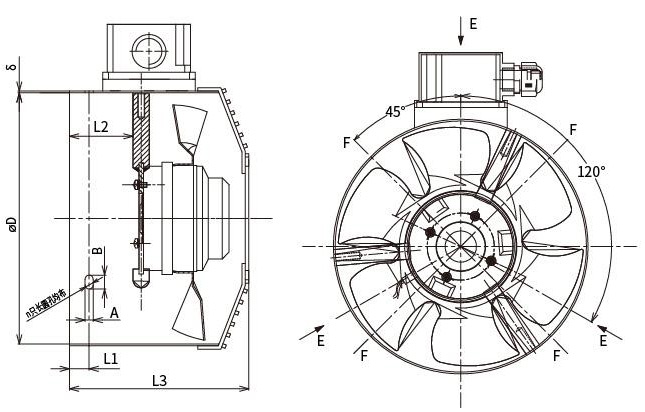

| 型號 | φD | L1 | L2 | X | L3 | δ | A | B | n |
|---|---|---|---|---|---|---|---|---|---|
| G-80H | 155 | 15 | 50 | 10 | 155 | 1.5 | 6 | 10 | 3 |
| G-90H | 175 | 15 | 55 | 10 | 162 | 1.5 | 6 | 10 | 3 |
| G-100H | 193 | 15 | 55 | 10 | 155 | 1.5 | 7 | 12 | 3 |
| G-112H | 217 | 17 | 55 | 10 | 155 | 1.5 | 7 | 12 | 3 |
| G-132H | 258 | 17 | 60 | 10 | 180 | 1.5 | 7 | 12 | 3 |
| G-160H | 314 | 20 | 92 | 10 | 225 | 1.5 | 7 | 12 | 4 |
| G-180H | 352 | 35 | 118 | 10 | 250 | 1.5 | 7 | 12 | 4 |
| G-200H | 393 | 40 | 130 | 10 | 260 | 1.5 | 9 | 15 | 4 |
| G-225H | 443 | 45 | 141 | 15 | 300 | 2 | 9 | 15 | 4 |
| G-250H | 482 | 55 | 158 | 15 | 320 | 2 | 9 | 15 | 4 |
| G-280H | 546 | 65 | 167 | 15 | 335 | 2 | 11 | 20 | 4 |
| G-315H | 614 | 75 | 185 | 30 | 390 | 2 | 11 | 25 | 4 |
| 風機型號 | 電機型號 | 電壓 V | 頻率 Hz | 輸入功率 W | 額定電流 A | 轉速 rpm | 風量 m3/h | 風壓 Pa | 噪聲 dB(A) | 防護等級 IP |
|---|---|---|---|---|---|---|---|---|---|---|
| G-80H | 72-18 | 380 | 50 | 55 | 0.15 | 2850 | 58 | 60 | 62 | 54/55 |
| G-90H | 72-18 | 380 | 50 | 55 | 0.15 | 2650 | 91 | 80 | 65 | 54/55 |
| G-100H | 92-15 | 380 | 50 | 65 | 0.15 | 2750 | 142 | 80 | 67 | 54/55 |
| G-112H | 92-115 | 380 | 50 | 80 | 0.15 | 2550 | 229 | 80 | 67 | 54/55 |
| G-132H | 92-24 | 380 | 50 | 55 | 0.23 | 1430 | 337 | 35 | 69 | 54/55 |
| G-160H | 92-32 | 380 | 50 | 60 | 0.28 | 1400 | 609 | 40 | 72 | 54/55 |
| G-180H | 92-32 | 380 | 50 | 85 | 0.28 | 1350 | 686 | 55 | 72 | 54/55 |
| G-200H | 92-32 | 380 | 50 | 110 | 0.28 | 1200 | 1679 | 65 | 72 | 54/55 |
| G-225H | 102-48 | 380 | 50 | 170 | 0.40 | 1450 | 1785 | 70 | 74 | 54/55 |
| G-250H | 102-55 | 380 | 50 | 200 | 0.60 | 1400 | 1813 | 80 | 75 | 54/55 |
| G-280H | 102-55 | 380 | 50 | 270 | 0.60 | 1350 | 2415 | 85 | 78 | 54/55 |
| G-315H | 138-50 | 380 | 50 | 520 | 1.05 | 1300 | 2820 | 110 | 81 | 54/55 |
